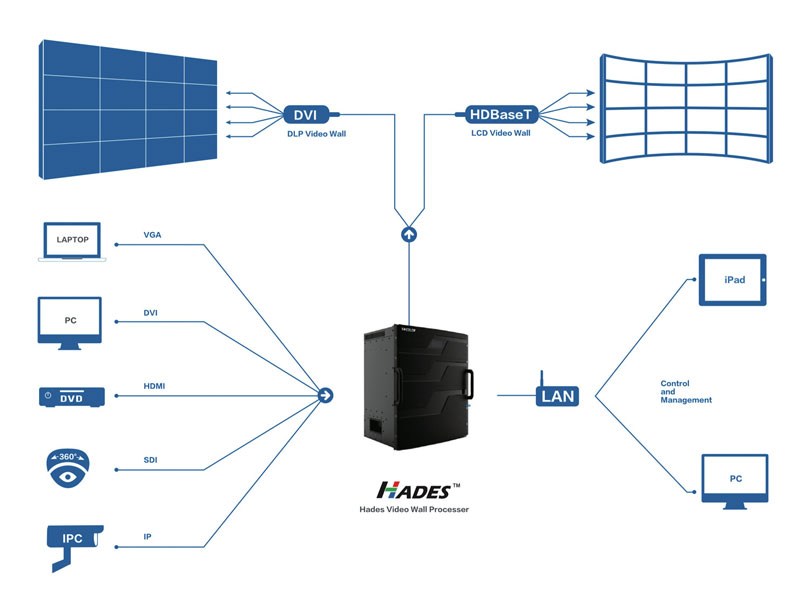

Product Description

HADES Series video wall processor is a processor platform that has pure hardware architecture, a high-performance video image processing system without software operation, realizing multi-windows splicing function. The processor combines high-definition video signal acquisition, real-time high-resolution digital image processing, and high-end image processing such as 3D high-order digital filtering to provide powerful signal processing capabilities. This product uses a high-capacity high-speed FPGA array and CrossPoint digital multi-bus data routing as well as a switching processing mechanism to fundamentally guarantee full real-time processing and data consistency for all input sources. This is all achieved with no delay, no discretization, and no frame loss which will give you the perfect image.

Perfume Boxes Perfume Boxes

Features

· Hot swappable I/O cards

· Seamless switch

· Redundant power backup

· EDID management

· Multiple scene saves and looping

· Background image

· Text overlay on input signal channels

· Input signal preview

· Multiple video wall groups management

· Multi-screen display

· Scaling, overlay and roaming of the screen

· Partial screen enlargement

· Signal cropping

· Screen anomaly correction functionality

· Ipad control

· 4K display

· Pure hardware design

· Signal preview

· Open RS232/ethernet control protocol

Specifications

... ...
Scale Card slot configuration Size Power consumption
Hades-H3-2U Input 2 slots, output 2 slots 482(W)x88(H)x380(D)mm <200W
Hades-H3-4U Input 4 slots, output 4 slots 482(W)x175(H)x380(D)mm <300W
Hades-H3-8U Input 8 slots, output 9 slots 482(W)x352(H)x380(D)mm <500W
Hades-H3-14U Input 16 slots, output 18 slots 482(W)x620(H)x380(D)mm <800W
Hades-H3-20U Input 32 slots, output 18 slots 482(W)x880(H)x380(D)mm <1000W
Hades-H3-28U Input 32 slots, output 36 slots 482(W)x1240(H)x380(D)mm <1200W
Scale Card slot configuration Size Power consumption
Hades-H5-4U Input 6 slots, output 2 slots 482(W)x175(H)x380(D)mm <300W
Hades-H5-8U Input 13 slots, output 4.5 slots 482(W)x352(H)x380(D)mm <500W
Hades-H5-14U Input 24 slots, output 9 slots 482(W)x620(H)x380(D)mm <800W
Hades-H5-22U Input 32 slots, output 18 slots 482(W)x934(H)x380(D)mm <1100W
Scale Card slot configuration Size Power consumption
Hades-V5-4U Input 6 slots, output 2 slots 482(W)x175(H)x380(D)mm <300W
Hades-V5-8U Input 13 slots, output 4.5 slots 482(W)x352(H)x380(D)mm <500W
Hades-V5-14U Input 24 slots, output 9 slots 482(W)x620(H)x380(D)mm <800W
Hades-V5-22U Input 32 slots, output 18 slots 482(W)x934(H)x380(D)mm <1100W

Slot Card Type

... ...
Input Interface
DVI DVI input card, support HDCP, support EDID online editing, maximum support resolution 1920*1200@60Hz
VGA VGA input card, support EDID online editing, maximum support resolution 1920*1200@60Hz
CVBS CVBS standard definition input card, support fixed PAL or NTSC system, support brightness, contrast, grayscale, saturation adjustment, CVBS HD input card, PAL/NTSC system adaptive, support 3D comb filtering and 3D deinterlacing, support brightness, contrast, grayscale, saturation adjustment
HDBaseT HDBaseT input card, the maximum input resolution is 1920*1200@60Hz, and it can be used with the equipment to transmit signals 70 or 100 meters through Category 6 twisted pair.
HDMI HDMI 1.3 input card, support HDMI1.3, support HDCP, support EDID online editing, maximum support resolution 1920*1200@60Hz HDMI 1.4 input card, meet HDMI 1.4 standard, input support 3840*2400@30, 3840*2160@30 , 2560*1600@60 and below resolution, support EDID customization, SDI input card, support SD/HD SDI signal, compatible with 3G SDI signal, with SDI signal loop out, support maximum resolution 1920x1080
SDI YPbPr input card, maximum support resolution 1920*1200@60Hz
YPbPr Optical fiber input card, maximum input resolution 1920*1200@60Hz, used with optical transceivers, can achieve 10KM transmission of input signals
Fiber Dual-Link DVI signal input card, 330MHz clock, support 4K signal input, input resolution typical value 3840x2400@30Hz
Dual-Link DVI Or 2560x1600@60Hz, support EDID online editing, input signal is not lost frame processing at all
Display-Port DisplayPort input card, support DP 1.1 standard, input resolution is usually 3840x2400@30 or 2560x1600@60, support EDID online editing, support input signal without frame loss processing
IP *IP decoding card, each card supports decoding 4 channels 1920x1080p@60, 8 channels 1920x1080p@30, 16 channels 1280x720p@30, or 36 channels D1 signals, supporting mainstream security platform access
... ...
Output Interface
DVI DVI output card, support DVI-I signal output, maximum output resolution 1920*1200@60Hz, can output VGA signal through adapter
HDMI HDMI 1.3 output card, maximum output resolution 1920*1200@60Hz *HDMI, 1.4 Output card, the maximum output resolution is 3840*2160@30Hz, which can be output by two channels: 3840x2160@50Hz
HDBaseT HDBaseT output card, the maximum output resolution is 1920*1200@60Hz, and it can be used with the equipment to transmit the output signal 70 or 100 meters through Category 6 twisted pair.
Fiber Optical fiber output card, the maximum output resolution is 1920*1200@60Hz, and it can be used with the equipment to transmit the output signal to 10KM through single-mode fiber.
SDI SDI output card, support SDI/HD-SDI, support SDI signal output, SDI signal backup, maximum output resolution 1920*1080@60Hz
CVBS CVBS output card, support PAL/NTSC system settings, support resolution 720x480i@30 frames, 720x576i@25 frames
YPbPr YPbPr output card, support resolution 1920x1080i@30, 1920x1080i@25, 1280x720p@60, 720x480i@30, 720x576i@25
Dual-Link DVI *Dual-Link DVI output card, single port maximum output resolution 3840*2160@30Hz
Gift Boxes
VIP Gift Boxes

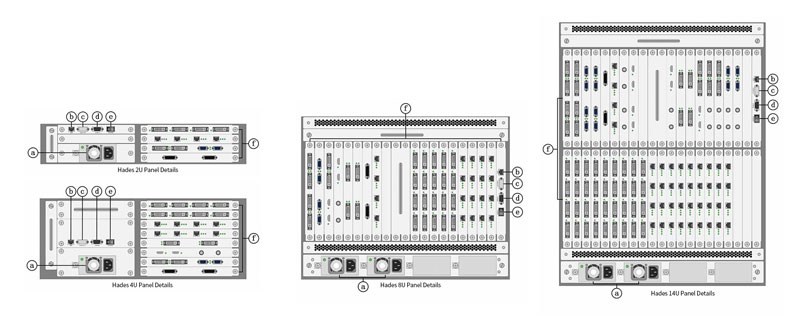

Instruction:

·a: Power input port Drawer structure, support AC 100 ~ 240V / 50 ~ 60Hz input.

b: Network communication interface: Ethernet network connection port, dedicated for connection with upper computer.

c : RS-232 serial output, Provide 1 independent RS-232 port (DB9 male) for connecting PC or central control to control the system.

d: RS-232 serial input, Provide 1 independent RS-232 port (DB9 female) for connecting PC or central control to control the system.

e: Switch, Power on and off switch.

f: Input / output card slot, Place the input and output cards.

Features

With Tricolor’s Hades video wall process get the most source flexibility in the market with high-resolution. Using our unique technology you get the most visual source flexibility, hardware simplicity, and high-performance processing and control. Distribute virtually unlimited content sources in real time without delay and loss of frame and data consistency.

Pure hardware modular design

Hades technology implies pure hardware design without any operation system which also avoids the X86 controller crash, blue screen, viruses and other common problems. This means you save money on proprietary hardware and it simplifies the complexity of your video wall system making it easier to troubleshoot and support. Save up to 40% in upfront costs by replacing a traditional proprietary video wall processor with Tricolor all series products.

Multi-Screen Group Management

It provides a unique experience of high resolution real-time total adaptation which can also support multiple groups of screens with different resolutions at the same time. It uses projection based display with a seamless drag and drop interface, schedule presets, create zones and manipulate sources with multi-window or picture in picture layouts.

4K

The design supports DL-DVI, HDMI 1.4, DP and 4K signal acquisition. It allows Hades to achieve a larger resolution image for more powerful display. It is perfectly compatible with Nvidia Mosaic and AMD Eyefinity technology. These features allow it to deliver incredible visual experience and content.

Signal Preview

Hades exclusive design supports a signal preview technology which allows all input signals in real-time in the control software. This prevents the operator from displaying the wrong signals on the video wall. The operator can also view the real time echo image of the video wall to improve the operator work and efficiency without the need to add proprietary hardware components.

Cross Media

The elegant design allows it to be used with the Cross Media visual operation system. Operator can control the processor through IPad. The convenience of using it with an IPad allows operator to manage screen display with the touch operation mode. It supports real-time preview of all signals on an IPad. This extraordinary feature of Mobius brings a unique and convenient experience to the operator.
