Home / Products / TMV

Product Description

This product is a high-performance 4-by-1 Quad Multi-Viewer with a seamless switcher. It supports four High definition input source display on one screen, and have three multi-view effect mode. As a switcher, it can also seamlessly switch the four HD inputs freely. The product can be controlled in various ways, through the front panel button control, IR control, RS232 control, etc. The product provides a S/PDIF link to output the HDMI source audio at the same time. In addition, this product has a basic version and an extender version. The Extender version can extend the video and audio signals over single 50m CAT5e/6 with Bi-directional IR control.

Features

· Compliant with HDMI 1.3a,HDCP 1.2；

· Supports multiplexed HDMI 4-input and 1-output；

· Supports up to 1080p High Definition resolution；

· Support 4by1 Quad Multi-viewer and seamless switch；

· Support scaler up,scaler down function；

· Support multi output resolution；

· Support digital audio format LPCM/AC3/DTS

· Support button,IR,RS232 etc various controlled ways；

· IR system allowing for control of source at display end；

· Allows HDMI Audio/Video and IR signals to be transmitted over a single Cat5e/6 cable(Extender Version).

TMV-H

... ...


Video Bandwidth	2.25Gbps
Input Ports	4 × HDMI (Female type),1x RS232;
Output Ports	1 × HDMI (Female type),1xRCA,1xUTP(Extenderversion)
Audio output	PCM2, 5.1, 7.1CH, Dolby 5.1, DTS5.1
Input Resolution	480i60Hz,480p60Hz,576i50Hz,576p50Hz,720p50/60Hz, 1080i50/60Hz,1080p24/30/50/60Hz,800x600@60, 1024x768@60,1280x720@60,1920x1080@60;
Output Resolution	1080p,1080i,720p,1024x768,1360x768
ESD Protection	Human Body model: ±8 kV (air-gap discharge) ±4 kV (contact discharge)
Power Supply	12 V/2.5A DC (US/EU standards, CE/FCC/UL certified)
Dimensions	118mm(W) X 250mm (D) X 32mm(H)
Weight	750 g
Chassis Material	Metal
Silkscreen Color	Black
Operating Temperature	0 °C~40 °C/ 32 °F~104 °F
Storage Temperature	−20 °C ~ 60 °C/−4 °F ~140 °F
Relative Humidity	20~90 % RH (non-condensing)

... ...

Product model / specification	TMV-H-0201	TMV-H-0401	TMV-UH-0402	TMV-H2-0401	TMV-UH-0901	TMV-H-1601
Video interface	HDMI	HDMI	HDMI	HDMI	HDMI	HDMI
Number of inputs	2	4	4	4	9	16
Number of outputs	1	1	1 HDMI,1 VGA	1 HDMI,1 VGA	1	1
2K @ 60Hz	YES	YES	YES	YES	YES	YES
4K @ 30Hz	-	-	YES	-	YES	-
EDID Management	-	-	YES	-	YES	-
Audio separation	-	YES	YES	YES	YES	-
IR	YES	YES	YES	YES	YES	YES
RS232	YES	YES	-	-	YES	YES
Output backup	-	-	YES	YES	-	-

Front panel

1. ON/OFF: Power on/off switch.

2. SERVICE: For factory use only.

3. IR : Remote control receiver window.

4. POWER LED: This red LED illuminates when the device is connected with power supply.

5. IN1,2,3,4 LED: These red LED illuminates when the output select to the corresponding input.

6. INPUT BUTTON: Press this button to select the input source.

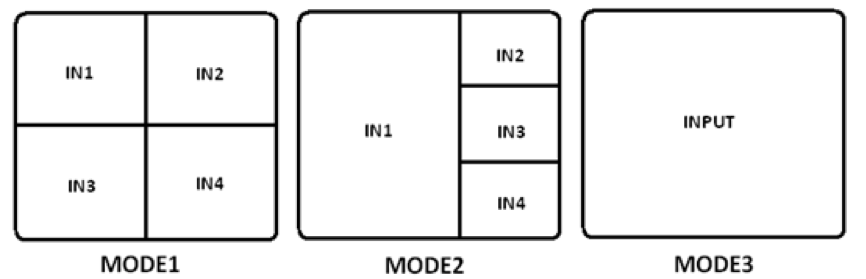

7. MODE BUTTON: Press this button to select the multi-view display mode.

8. RESO BUTTON: Press this button to select the HDMI output resolution.

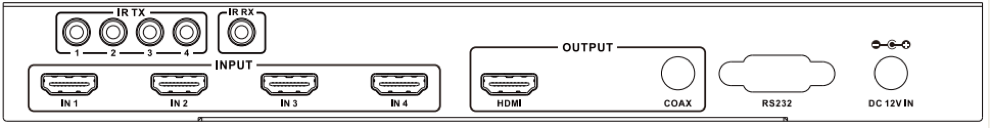

Rear panel (Basic Version)l

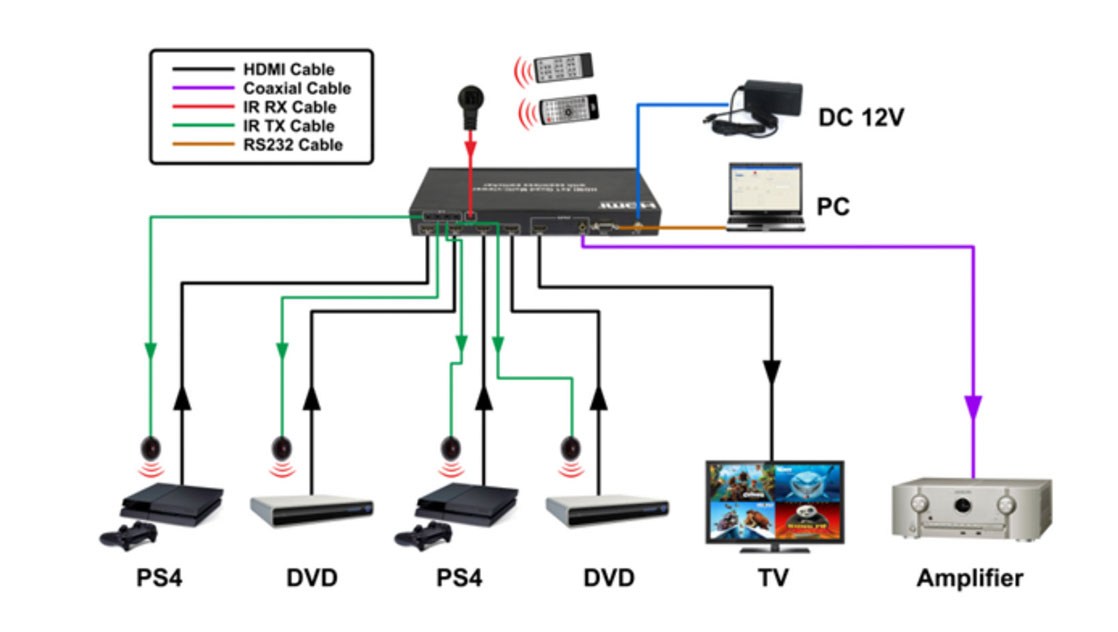

1. Input: These slot is where you connect the HDMI source output from DVD, PS3,Set-top Box and Note Book.

2. OUTPUT: The HDMI is where you connect the HDTV or monitor with HDMI cable for input source display.The Coax is where you connect to the amplifier with coaxial cable.

3. IR RX: Connect to the IR Receiver for IR signal reception. Ensure that remote being used is within the direct line-of-sight of the IR receiver.

4. IR TX: Connect the IR Blaster cable included in the package for IR signal transmission. Pace the IR blaster in direct line-of-sight of the equipment to be controlled.

5. RS232: Connect the RS232 port to the PC or notebook by RS232 Cable.

6. DC 12V: Plug the 12V DC power supply into the unit and connect the adaptor to AC wall outlet.

Ultra 4K

TMV has been designed to use with 4K Resolution video wall. It also includes a range of features beyond Resolution, such as: High Dynamic Range (HDR), Wider Color Spectrum, Color Bit Depth, Immersive Audio and more. The advanced performance enable unprecedented visual experience, and allow viewers to have an accurate experience of content vision.
